FIREROL Thin Wall Single Core Unsheathed Cables 250V

NF F 63-808 (FRF-TW-025SU)

FIREROL Thin Wall Single Core Unsheathed Cables 250V

Application

These cables are used as signal and control cable for protected installations inside and outside of rail and

transport vehicles, where space and weight are an important factor, suitable for use in cable harnesses,

switchboards and control panels, driver desks etc

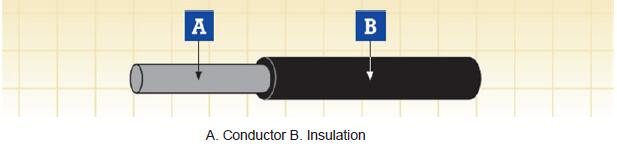

Construction

Conductor

Stranded tinned copper wires

Insulation

Radiation crosslinkable LSZH compound

Electrical & Mechanical Properties

Nominal Voltage                                                                   250V

Maximum Conductor Temperature                                       105°C/125°C

Temperature Range                                                             -40°C~+105°C

Bending Radius                                                                   5 × Overall Diameter

Standards

NF F 63-808

NF F 16-101

BS 6853

DIN 5510

Fire Performance in general

EN 50265-2-1; IEC 60332-1-2; NF C 32-070 2.1 (C2)                Vertical flame propogation for a single insulated

wire or cable EN 50266-2-4 + EN 50305; IEC 60332-3-24;                          Vertical flame spread of vertically

mounted bunched wires or cables NF C 32-070 2.2 (C1); VDE 0472 Teil 804

EN 50268-2; IEC 61034-2; NF C 32-073 ;  Low Smoke Emission NF C 20-902; NF F 16 101; VDE 0472 Teil 816

EN 50267-2-1; IEC 60754-1; NF C 32-074;                                Halogen Free

NF C 20-454; VDE 0472 Teil 815

EN 50267-2-2/3; IEC 60754-2; NF C 32-074;    Low Corrosivity (Acidity & Conductivity) NF C 20-453; VDE 0472

Teil 813

EN 50305; NF X 70-100; NF F 63 808; TM1-04; BS6853           Low Toxicity

NF F 63 808; BS6853; NF F 16 101                                           Smoke index

FRF-TW-025SU 250V

Nominal Cross Sectional Area

Number & Nominal Diameter of Strands

Overall Diameter

Weight

Min.

Max.

mm²

No/mm

mm

mm

kg/km

0.38

19/0.16

1.15

1.35

4.7

0.60

19/0.20

1.30

1.55

6.5

0.93

19/0.25

1.55

1.80

9.9

1.34

19/0.30

1.80

2.00

14.0

1.82

37/0.25

2.10

2.40

18.4

2.61

37/0.30

2.50

2.80

27.8

4.32

61/0.30

3.00

3.30

44.2
